Content:
Laptop/Computer
Antennas/Receivers
Wireless Hornet/Antennas
Additional Hardware
Laptop/Computer
Specs:
- Intel Core i7 or better processor.
- 16 GB of RAM (more memory is recommended if the system has an integrated video card).
- Windows 10 is needed.
- At least a 500 GB hard drive.
Ordering Options:
- ClubReady: https://form.jotform.com/83174632119153
- Third Vendor: Amazon, Best Buy
HR Systems Setup Options:
- Laptop – extend screen to display TV
- Micro computer – behind display TV, use display TV as screen, will need a wireless keyboard
Cycling Setup Options:
- Laptop – extend screen to display TV
Antennas/Receivers
Options:
- GEM3-PoE
- Wireless
Ordering Options:
- ClubReady: https://form.jotform.com/83174632119153

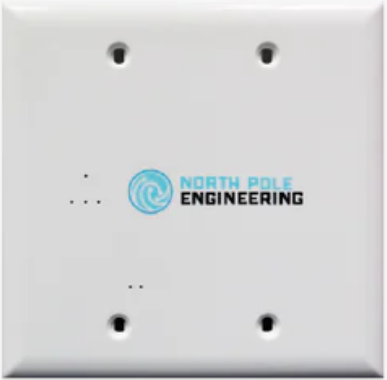

GEM3-PoE Antennas with Adapter:
- Concurrent Communication with 60+ Sensors
- Direct Connect Apple Watch heart rate with up to 15 watches per radio (configurable, requires heartbeatz Pro watch app)
- Distributed collection and control throughout a facility
- Bi-Directional sensor communication and control
- ANT/ANT+/ANT-FS/BLE compatible
- Simultaneous traffic management from various combinations of Bluetooth Smart and ANT protocols
- Point-to-point and multicast streaming
- OEM Access to packet protocol and API Library
- Mounts in a standard J-Box installation

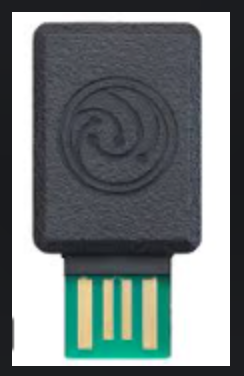

Wireless Hornet/Antennas:
- Commonly preferred antenna option.
- Easier setup (turn ON and plug in to an outlet).
- Uses WiFi.
- Less coverage (400-500 sq ft/antenna)
- Will need a separate router (recommended)
- Recommended quantity: at least 2 (they run in pairs).

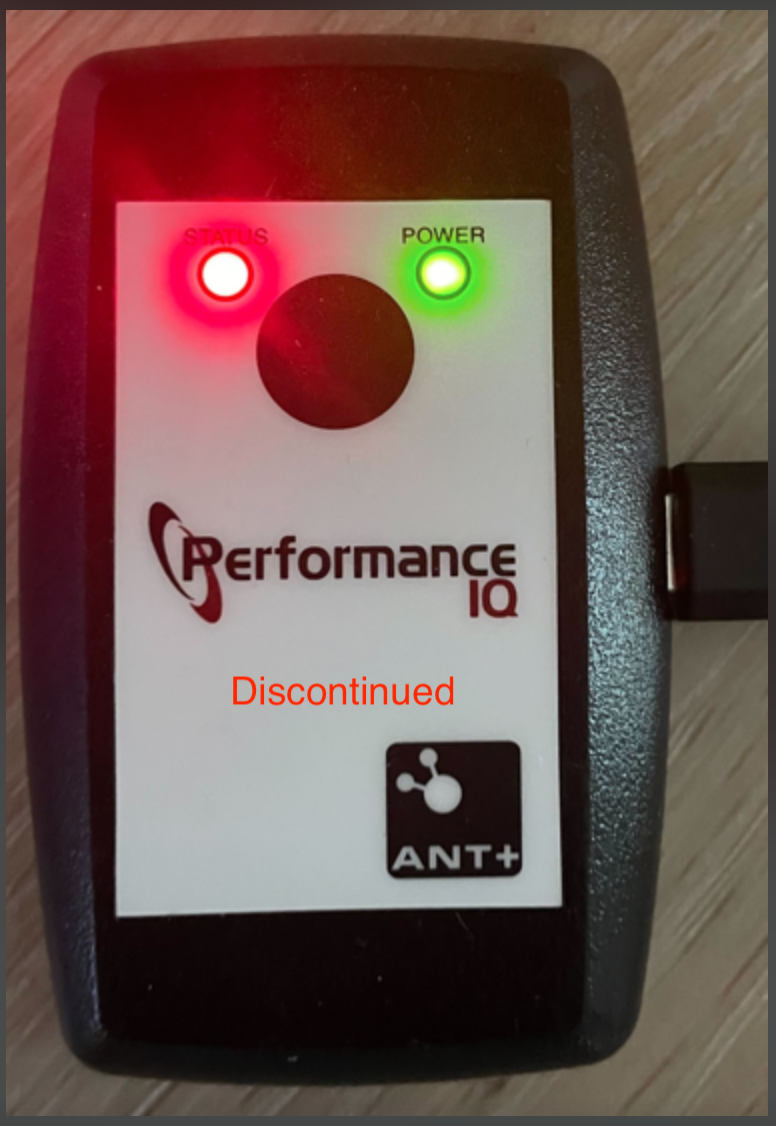

Please Note: The ANT+ (right image) antenna is discontinued (no longer available for purchase), but are still compatible and supported by ClubReady <> PerformanceIQ.
Additional Hardware
For Wireless antennas:
- Basic router (can either be ordered through ClubReady or a third vendor)
Display TV:
- Order through a third vendor
Casting Options:
- HDMI
- Wireless (Chromecast, AirParrot)
- Common for build outs
